The Rhino Kit is made in the U.S. from American, high-strength steel, and is designed to serve as both a repair kit and a protection kit. The Rhino Kit is available in multiple models and each comes with a 20 year warranty.
Some of the unique attributes of the Rhino Kit are:
- The ONLY kit on the market designed for both direct AND indirect impacts
- One of the only systems certified to be installed in ALL U.S. seismic zones
- We can train your personnel to install the Rhino Kit in an efficient and safe manner
- Can replace/repair uprights with up to 72" (height) of damage
- Comes in both bolt-on and weld-on models
- Each Rhino Kit is equipped with a position inside the front nose guard where you are able to install a shear-lug to provide additional resistance against bolt-shearing
The Rhino Kit is offered in weld-on, bolt-on, and seismic bolt-on models for a variety of racking systems and sizes. Our unique ability to design, test, and manufacture also gives us the flexibility to make design adjustments to fit your particular requirements. So if you need a solution for a unique racking system, or if you would like a taller or shorter version of our Rhino Kit, we can design and manufacture to fit your particular needs.
the Rhino kit system

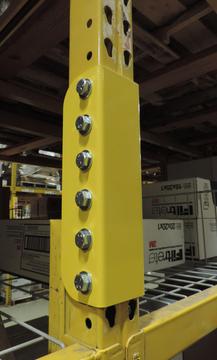

Splice Kit
This video shows the comparison of a Bolt-on Rhino Kit installation using our Atlas Lift, compared to the typical method of replacing a damaged upright.
Using our system, the Atlas Lift is capable of supporting the weight of the freight above the damage while the damaged portion of the upright is removed and replaced with a Rhino Kit.
As shown, our system will save you time and money up front with the significant reduction of time of installation, down time, lost freight, outages, etc. Our system will also continue to provide value by withstanding direct and indirect impacts for years to come, and protecting both your assets and personnel.
Click to enlarge

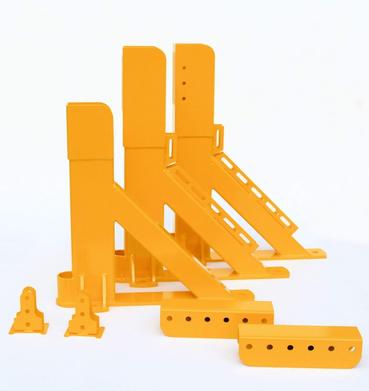

Rhino Kit Models
Weld-On Rhino Kit
Brute Force Designs, LLC
Bolt-On Rhino Kit
Want to find out more?
Click to enlarge

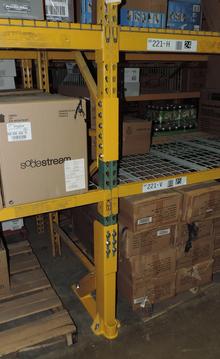

The Rhino Kit was designed to replace a damaged portion of an upright with a height up to 21". However, if paired with our Splice Kit and Cross Member Mounts, it can be used to replace damage up to 72" in height.

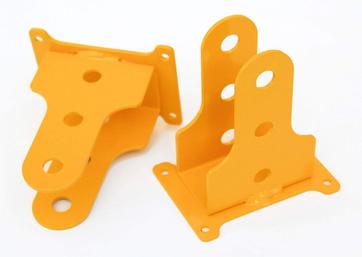

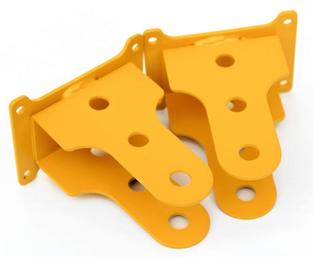

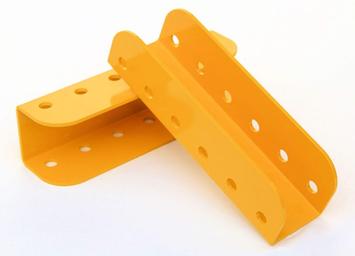

Our Splice Kit utilizes a spare piece of your racking to replace the damaged portion with an undamaged section, and the Cross Member Mounts make it easy to reattach the cross members that were cut for the repair.
Seismic Bolt-On Rhino Kit
Click to enlarge
